ipywidgets可以用于在jupyter notebook当中进行界面设计,以及一些简单的交互式控件操作。
官方文档有详细介绍,本文主要将常用的部件进行了演示,如需详细研究,请移步官方文档ipywidgets
interact方法可以实现一些基础的交互式控件,可以自动生成函数参数的UI控件。
| from ipywidgets import interact,fixed |
| |
| |
| def foo(x): |
| return x |
当传递一个参数x=10,会生成一个滑块并且绑定到函数参数
传递布尔值,生成复选框
传递字符串,生成文本框
| interact(foo,x="hello world") |
传递列表,生成下拉框
| interact(foo,x=['a','b','c','d']) |
传递字典,生成下拉框,键值对应
| interact(foo,x={"a":1,"b":2,"c":3}) |
传递元组,(min,max,step)最小值,最大值,步长
补充:还可以使用浮点数,生成浮点数滑块。

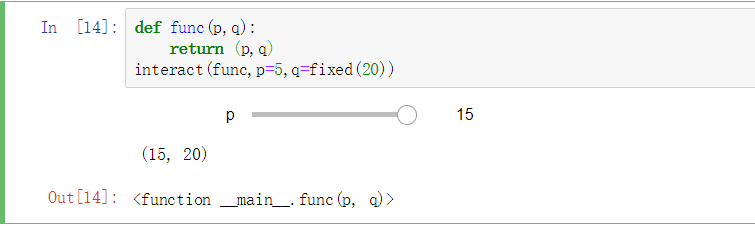

以上方法都是将一个参数生成为特定值,当需要多个参数时就需要用到fixed
参数。
| def func(p,q): |
| return (p,q) |
| |
| interact(func,p=5,q=fixed(20)) |
| import ipywidgets as widgets |
| from ipywidgets import Layout |

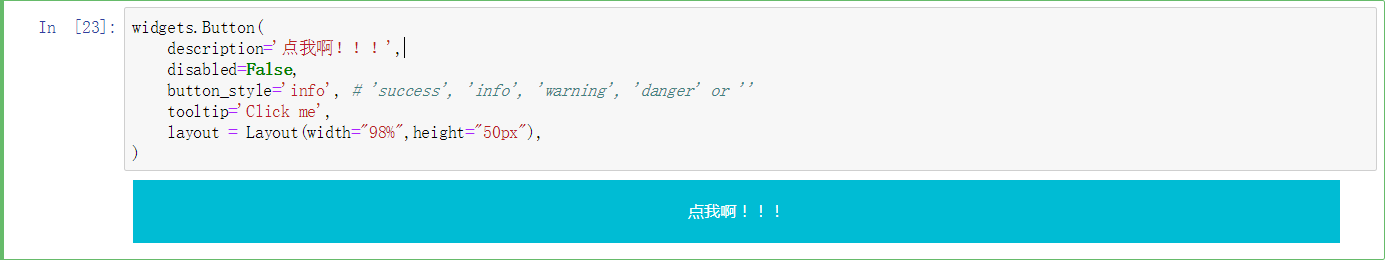

| widgets.Button( |
| description='点我啊!!!', |
| disabled=False, |
| button_style='info', |
| tooltip='Click me', |
| layout = Layout(width="98%",height="50px"), |
| ) |
用于显示布尔值

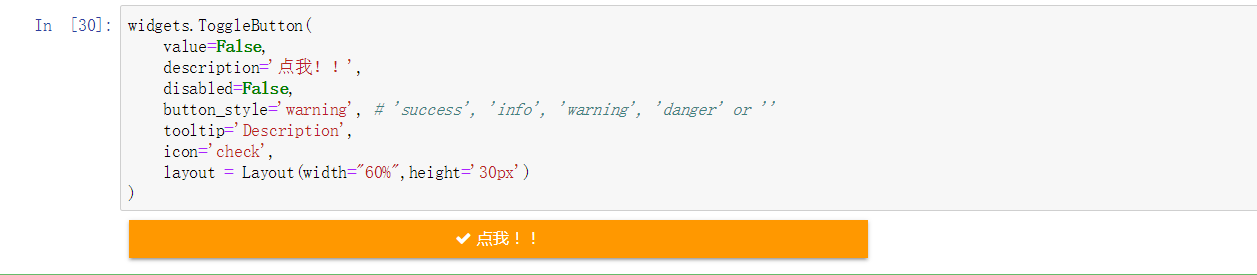

| widgets.ToggleButton( |
| value=False, |
| description='点我!!', |
| disabled=False, |
| button_style='warning', |
| tooltip='Description', |
| icon='check', |
| layout = Layout(width="60%",height='30px') |
| ) |

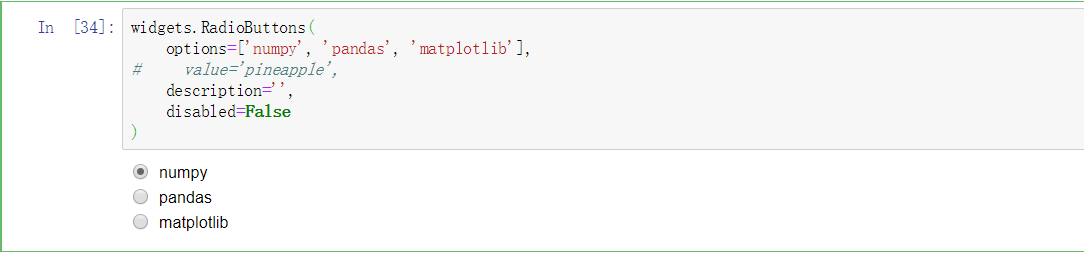

| widgets.RadioButtons( |
| options=['numpy', 'pandas', 'matplotlib'], |
| |
| description='', |
| disabled=False |
| ) |

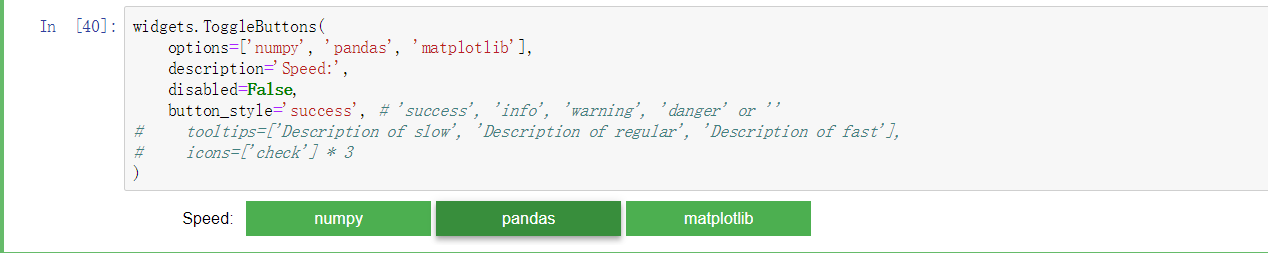

| widgets.ToggleButtons( |
| options=['numpy', 'pandas', 'matplotlib'], |
| description='Speed:', |
| disabled=False, |
| button_style='success', |
| |
| |
| ) |

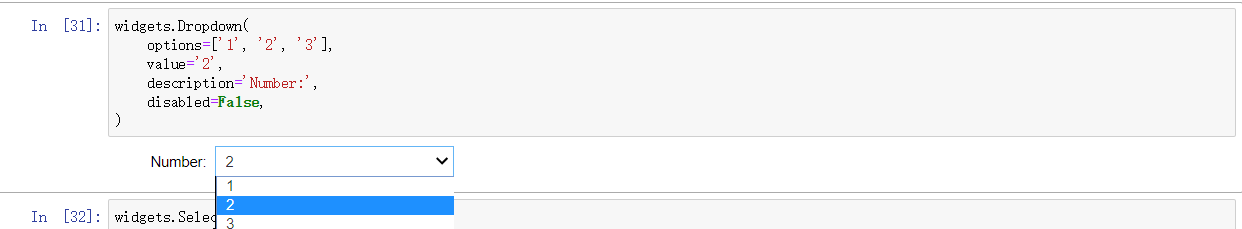

1、Dropdown(下拉框)
| widgets.Dropdown( |
| options=['1', '2', '3'], |
| value='2', |
| description='Number:', |
| disabled=False, |
| ) |

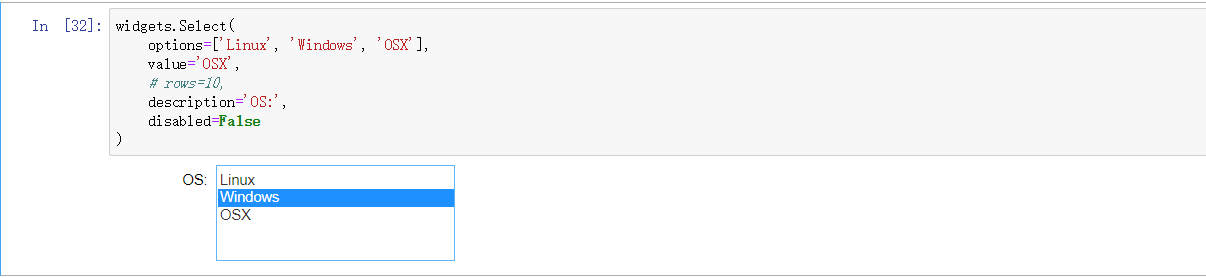

2、Select(单选框)
| widgets.Select( |
| options=['Linux', 'Windows', 'OSX'], |
| value='OSX', |
| |
| description='OS:', |
| disabled=False |
| ) |

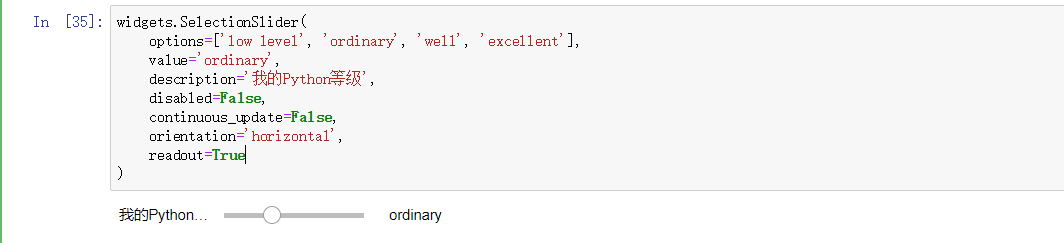

3、SelectionSlider(滑动部件)
| widgets.SelectionSlider( |
| options=['low level', 'ordinary', 'well', 'excellent'], |
| value='ordinary', |
| description='我的Python等级', |
| disabled=False, |
| continuous_update=False, |
| orientation='horizontal', |
| readout=True |
| ) |

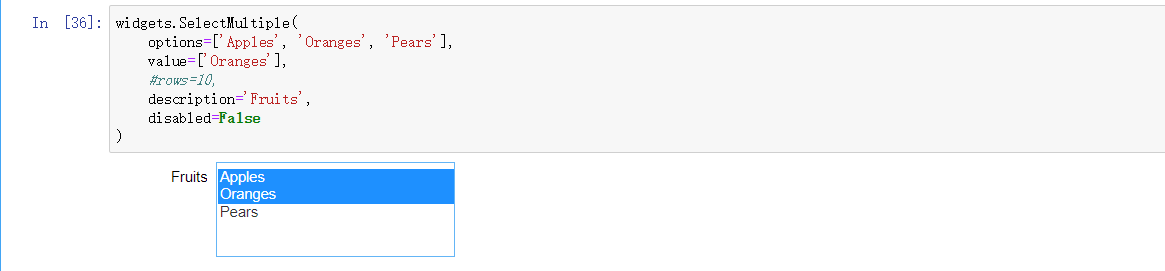

4、SelectMultiple(复选框)
| widgets.SelectMultiple( |
| options=['Apples', 'Oranges', 'Pears'], |
| value=['Oranges'], |
| |
| description='Fruits', |
| disabled=False |
| ) |

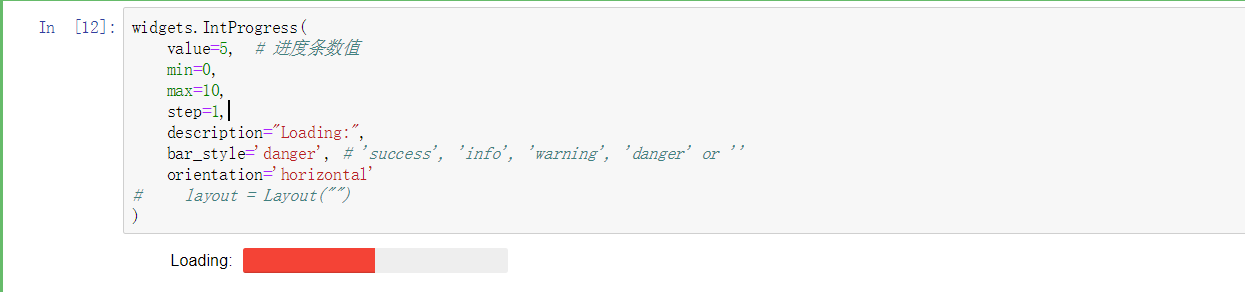

| widgets.IntProgress( |
| value=5, |
| min=0, |
| max=10, |
| step=1, |
| description='Loading:', |
| bar_style='danger', |
| orientation='horizontal' |
| ) |

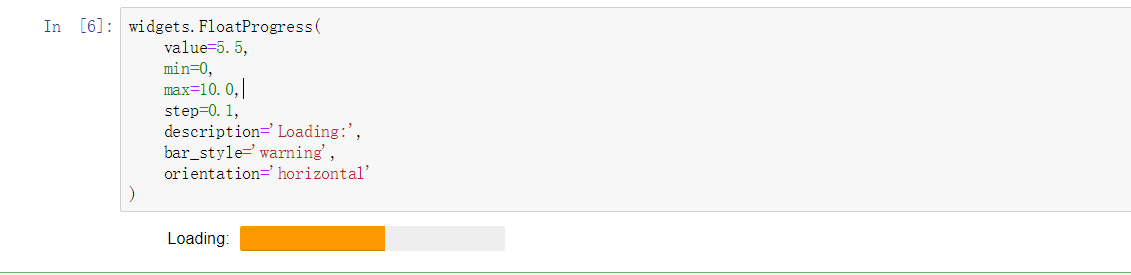

| widgets.FloatProgress( |
| value=5.5, |
| min=0, |
| max=10.0, |
| step=0.1, |
| description='Loading:', |
| bar_style='warning', |
| orientation='horizontal' |
| ) |

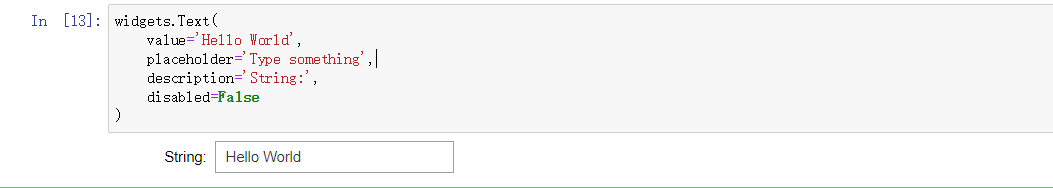

| widgets.Text( |
| value='Hello World', |
| placeholder='Type something', |
| description='String:', |
| disabled=False |
| ) |

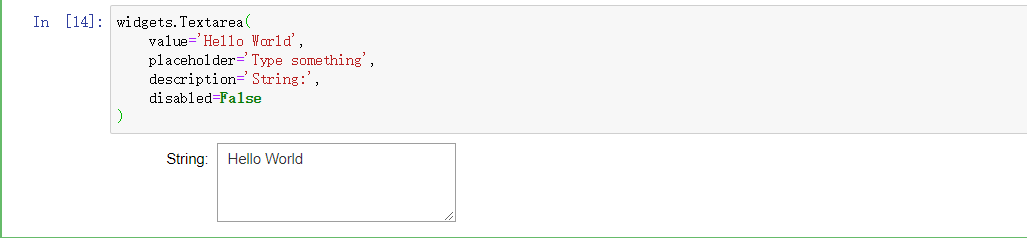

| widgets.Textarea( |
| value='Hello World', |
| placeholder='Type something', |
| description='String:', |
| disabled=False |
| ) |
| |

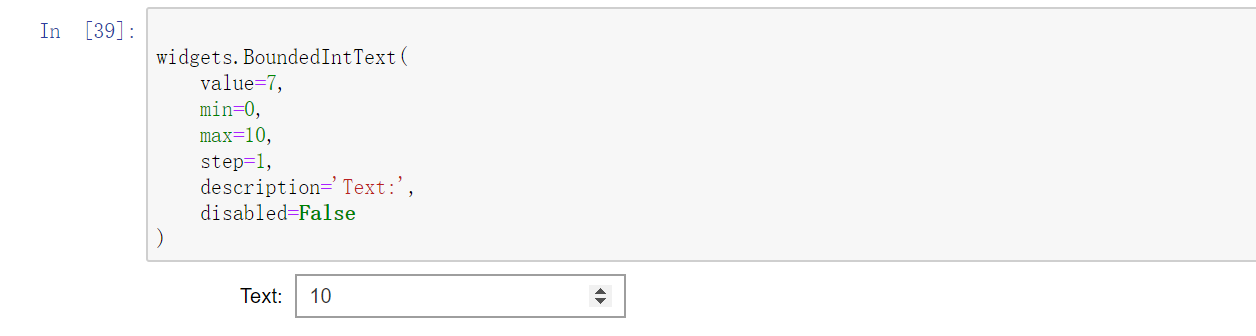

| widgets.BoundedIntText( |
| value=7, |
| min=0, |
| max=10, |
| step=1, |
| description='Text:', |
| disabled=False |
| ) |
| |
| widgets.BoundedFloatText( |
| value=7.5, |
| min=0, |
| max=10.0, |
| step=0.1, |
| description='Text:', |
| disabled=False |
| ) |

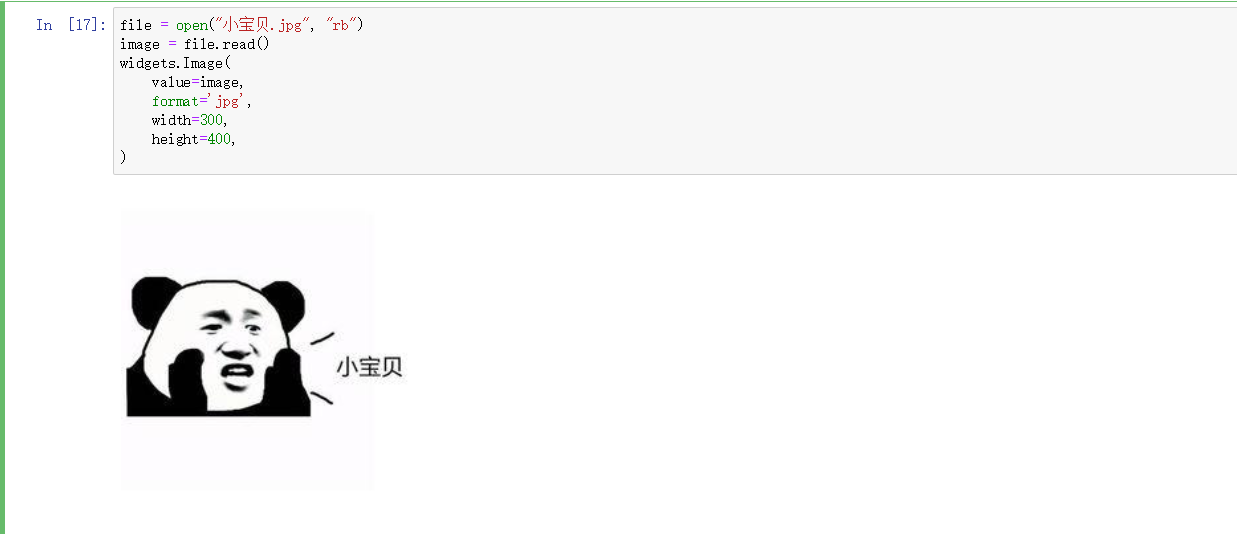

| file = open("小宝贝.jpg", "rb") |
| image = file.read() |
| widgets.Image( |
| value=image, |
| format='jpg', |
| width=300, |
| height=400, |
| ) |

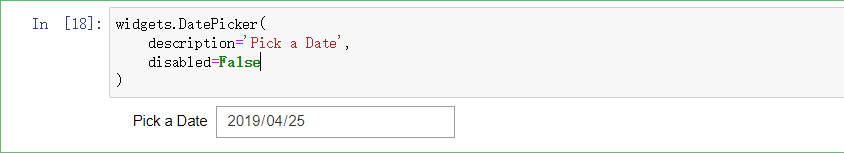

| widgets.DatePicker( |
| description='Pick a Date', |
| disabled=False |
| ) |

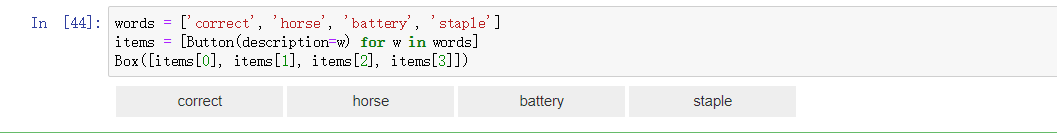

用于显示组件当中的多个小部件
| words = ['correct', 'horse', 'battery', 'staple'] |
| items = [Button(description=w) for w in words] |
| Box([items[0], items[1], items[2], items[3]]) |

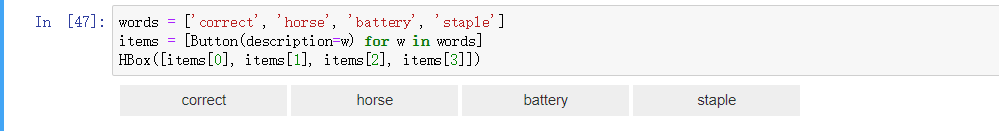

水平显示组件中多个小部件
| words = ['correct', 'horse', 'battery', 'staple'] |
| items = [Button(description=w) for w in words] |
| HBox([items[0], items[1], items[2], items[3]]) |

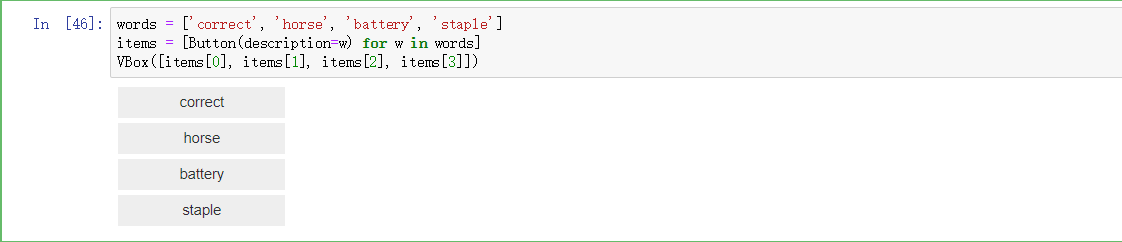

垂直显示组件中的多个小部件
| words = ['correct', 'horse', 'battery', 'staple'] |
| items = [Button(description=w) for w in words] |
| VBox([items[0], items[1], items[2], items[3]]) |

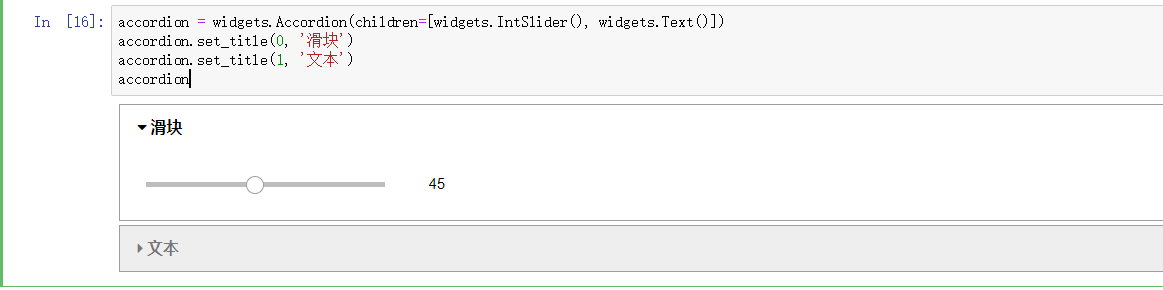

| accordion = widgets.Accordion(children=[widgets.IntSlider(), widgets.Text()]) |
| accordion.set_title(0, '滑块') |
| accordion.set_title(1, '文本') |
| accordion |

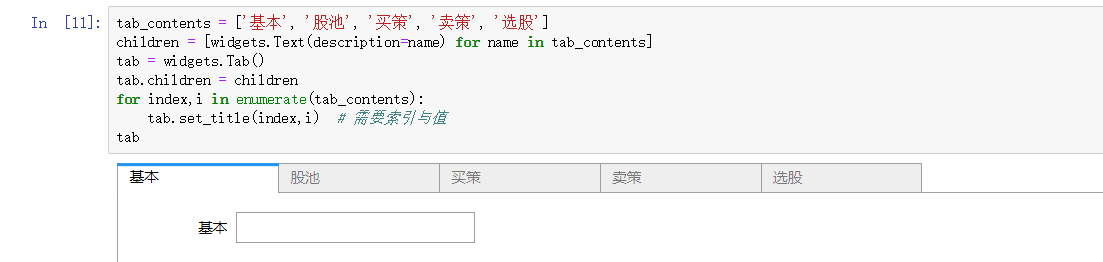

| tab_contents = ['基本', '股池', '买策', '卖策', '选股'] |
| children = [widgets.Text(description=name) for name in tab_contents] |
| tab = widgets.Tab() |
| tab.children = children |
| for index,i in enumerate(tab_contents): |
| tab.set_title(index,i) |
| tab |

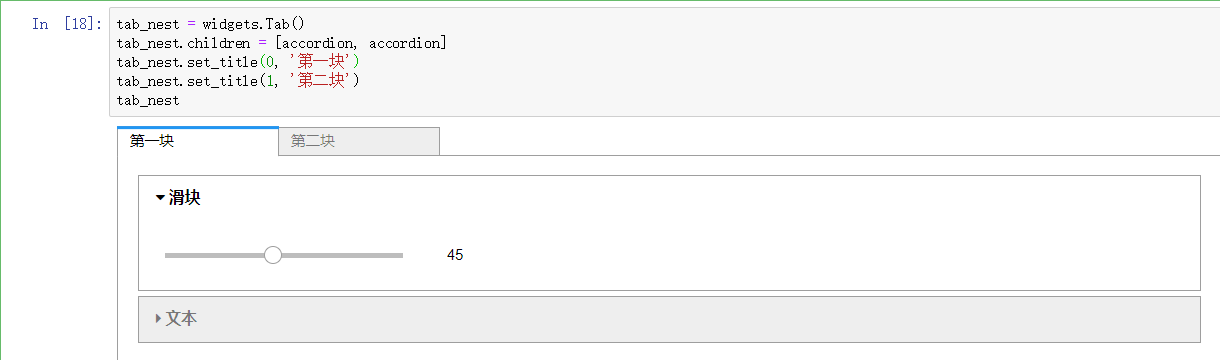

| tab_nest = widgets.Tab() |
| tab_nest.children = [accordion, accordion] |
| tab_nest.set_title(0, '第一块') |
| tab_nest.set_title(1, '第二块') |
| tab_nest |
| |

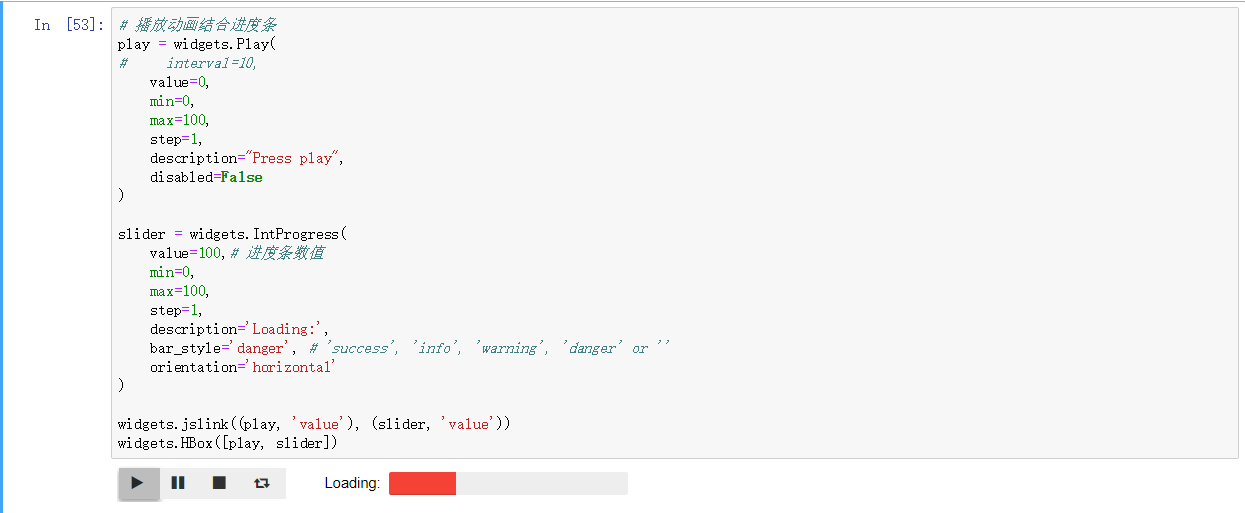

| play = widgets.Play( |
| |
| value=0, |
| min=0, |
| max=100, |
| step=1, |
| description="Press play", |
| disabled=False |
| ) |
| |
| slider = widgets.IntProgress( |
| value=100, |
| min=0, |
| max=100, |
| step=1, |
| description='Loading:', |
| bar_style='danger', |
| orientation='horizontal' |
| ) |
| |
| widgets.jslink((play, 'value'), (slider, 'value')) |
| widgets.HBox([play, slider]) |
| |
| print(widgets.Button.on_click.__doc__) |

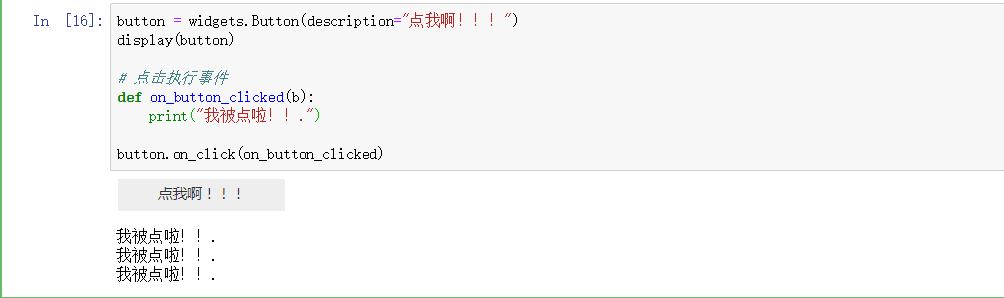

按钮点击是无状态发生的,因此想要将事件由前端传递到后端,就需要通过on_click
方法,在点击时执行相应的函数:
| button = widgets.Button(description="点我啊!!") |
| display(button) |
| |
| |
| def on_button_clicked(b): |
| print("Button clicked.") |
| |
| button.on_click(on_button_clicked) |

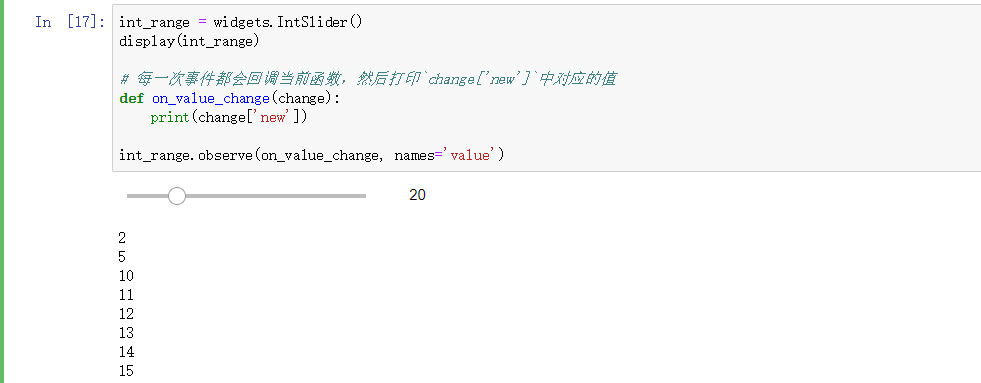

observe方法可以用于注册回调
| int_range = widgets.IntSlider() |
| display(int_range) |
| |
| |
| def on_value_change(change): |
| print(change['new']) |
| |
| int_range.observe(on_value_change, names='value') |
