kubeadm安装k8s

一、简介

    Kubernetes有两种方式，第一种是二进制的方式，可定制但是部署复杂容易出错；第二种是kubeadm工具安装，部署简单，不可定制化。本次我们部署kubeadm版.
    服务器配置至少是2G2核的。如果不是则可以在集群初始化后面增加 --ignore-preflight-errors=NumCPU

二、部署规划

1、版本规划

软件 版本
Centos 7.5版本及以上
Docker 19.03及以上
Kubernetse V1.20.5及以上
Flanner V0.13.0及以上
Kernel-lm kernel-lt-4.4.245-1.el7.elrepo.x86_64.rpm及以上
Kernel-lm-devel kernel-lt-devel-4.4.245-1.el7.elrepo.x86_64.rpm

2、节点规划

Hostname Ip 内核版本
k8s-master-01 192.168.15.31 5.0以上
k8s-node-01 192.168.15.32 5.0以上
k8s-node-02 192.168.15.33 5.0以上

三、修改网络及（三台主机）

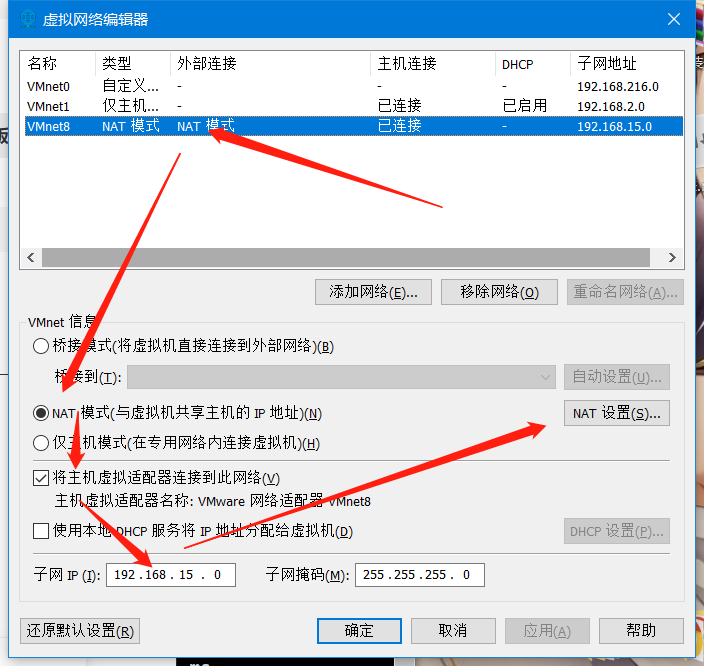

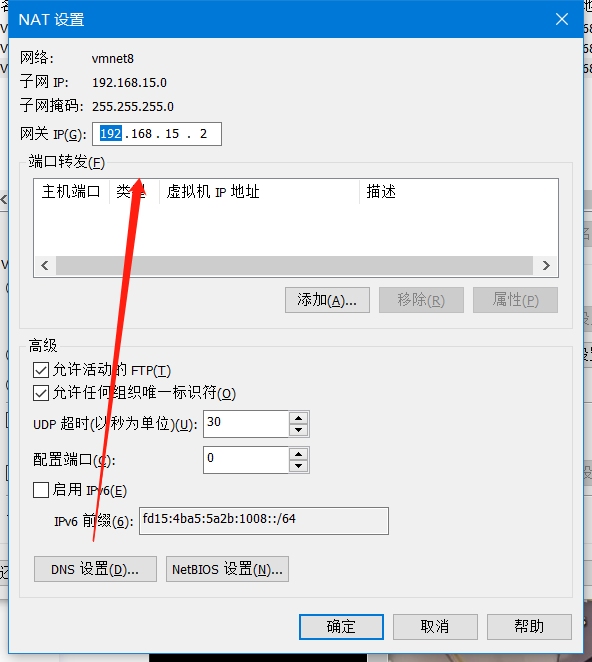

1、修改虚拟网络编辑器


2、克隆主机

192.168.15.31   k8s-m-01 m1
192.168.15.32   k8s-n-01 n1
192.168.15.33   k8s-n-02 n2

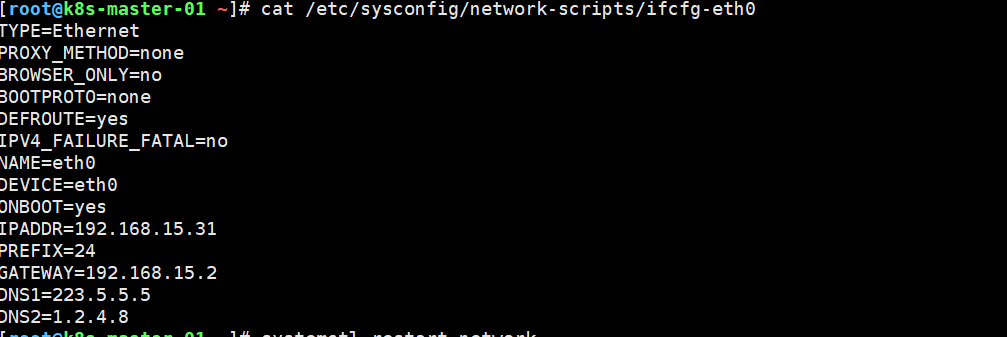

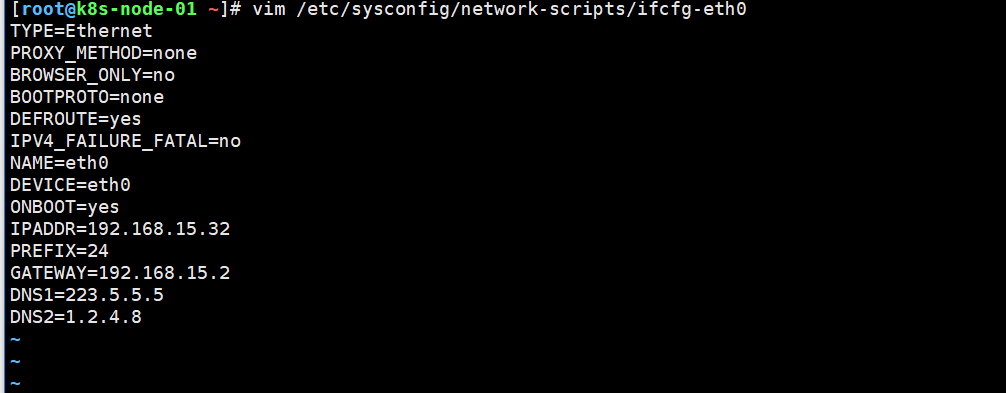

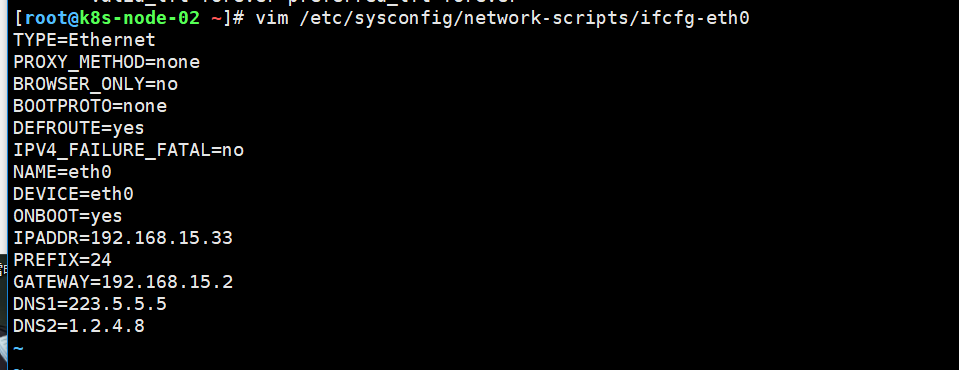

3、修改三台实例IP网关



内网eth1也要不同IP否则三台机器IP冲突。修改完成后重启网卡，ping baidu.com 查看网络是否畅通

四、修改主机名及解析(三台节点)

1、修改主机名

hostnamectl set-hostname k8s-master-01
hostnamectl set-hostname k8s-node-01
hostnamectl set-hostname k8s-node-02

2、添加host解析

cat /etc/hosts
192.168.15.31  k8s-master-01 m1
192.168.15.32  k8s-node-01   n1
192.168.15.33  k8s-node-02   n2

3、添加DNS解析

[root@k8s-master-01 ~]# vim /etc/resolv.conf
# Generated by NetworkManager
nameserver 223.5.5.5
nameserver 114.114.114.114

五、系统优化(三个节点全做)

1、关闭selinux

# 永久关闭
sed -i 's#enforcing#disabled#g' /etc/selinux/config

#临时关闭
setenforce 0

2、关闭防火墙

systemctl disable --now firewalld

3、关闭swap分区

# 关闭swap分区
swapoff -a

# kubelet忽略swap
echo 'KUBELET_EXTRA_ARGS="--fail-swap-on=false"' > /etc/sysconfig/kubelet

# 注释swap分区
vim /etc/fstab

4、做免密登录(主节点做)

[root@k8s-master-01 ~]# rm -rf /root/.ssh
[root@k8s-master-01 ~]# ssh-keygen      交互式直接全部回车
[root@k8s-master-01 ~]# cd /root/.ssh/
[root@k8s-master-01 ~/.ssh]# mv id_rsa.pub authorized_keys
[root@k8s-master-01 ~/.ssh]# scp  -r  /root/.ssh  192.168.15.32:/root
[root@k8s-master-01 ~/.ssh]# scp  -r  /root/.ssh  192.168.15.33:/root

5、同步集群时间

echo '#Timing synchronization time' >>/var/spool/cron/root  #给定时任务加上注释
echo '0 */1 * * * /usr/sbin/ntpdate ntp1.aliyun.com &>/dev/null' >>/var/spool/cron/root      #设置定时任务
crontab -l  #检查结果

6、更新yum源

rm -rf /etc/yum.repos.d/*

curl -o /etc/yum.repos.d/CentOS-Base.repo https://repo.huaweicloud.com/repository/conf/CentOS-7-reg.repo

yum remove epel-release
rm -rf  /var/cache/yum/x86_64/6/epel/
yum install -y https://repo.huaweicloud.com/epel/epel-release-latest-7.noarch.rpm

sed -i "s/#baseurl/baseurl/g" /etc/yum.repos.d/epel.repo
sed -i "s/metalink/#metalink/g" /etc/yum.repos.d/epel.repo
sed -i "s@https\?://download.fedoraproject.org/pub@https://repo.huaweicloud.com@g" /etc/yum.repos.d/epel.repo

yum clean all
yum makecache

7、更新系统软件(排除内核)

yum update -y --exclud=kernel*

8、安装基础常用软件

yum install wget expect vim net-tools ntp bash-completion ipvsadm ipset jq iptables conntrack sysstat libseccomp -y

9、更新系统内核（docker 对系统内核要求比较高，最好使用4.4+）

主节点操作

[root@k8s-master-01 ~]# wget https://elrepo.org/linux/kernel/el7/x86_64/RPMS/kernel-lt-5.4.107-1.el7.elrepo.x86_64.rpm

[root@k8s-master-01 ~]# wget https://elrepo.org/linux/kernel/el7/x86_64/RPMS/kernel-lt-devel-5.4.107-1.el7.elrepo.x86_64.rpm

[root@k8s-master-01 ~]# for i in n1 n2 m1 ; do scp kernel-lt-* $i:/opt; done

三个节点操作

#安装
yum localinstall -y /opt/kernel-lt*

#调到默认启动
grub2-set-default 0 && grub2-mkconfig -o /etc/grub2.cfg

#查看当前默认启动的内核
grubby --default-kernel

#重启系统
reboot

10、安装IPVS

1）yum安装

yum install -y conntrack-tools ipvsadm ipset conntrack libseccomp

2）加载IPVS模块

cat > /etc/sysconfig/modules/ipvs.modules <<EOF
#!/bin/bash
ipvs_modules="ip_vs ip_vs_lc ip_vs_wlc ip_vs_rr ip_vs_wrr ip_vs_lblc ip_vs_lblcr ip_vs_dh ip_vs_sh ip_vs_fo ip_vs_nq ip_vs_sed ip_vs_ftp nf_conntrack"

for kernel_module in \${ipvs_modules}; do
    /sbin/modinfo -F filename \${kernel_module} > /dev/null 2>&1
    if [ $? -eq 0 ]; then
        /sbin/modprobe \${kernel_module}
    fi
done
EOF

chmod 755 /etc/sysconfig/modules/ipvs.modules && bash /etc/sysconfig/modules/ipvs.modules && lsmod | grep ip_vs

11、修改内核启动参数优化

cat > /etc/sysctl.d/k8s.conf << EOF
net.ipv4.ip_forward = 1
net.bridge.bridge-nf-call-iptables = 1
net.bridge.bridge-nf-call-ip6tables = 1
fs.may_detach_mounts = 1
vm.overcommit_memory=1
vm.panic_on_oom=0
fs.inotify.max_user_watches=89100
fs.file-max=52706963
fs.nr_open=52706963
net.ipv4.tcp_keepalive_time = 600
net.ipv4.tcp.keepaliv.probes = 3
net.ipv4.tcp_keepalive_intvl = 15
net.ipv4.tcp.max_tw_buckets = 36000
net.ipv4.tcp_tw_reuse = 1
net.ipv4.tcp.max_orphans = 327680
net.ipv4.tcp_orphan_retries = 3
net.ipv4.tcp_syncookies = 1
net.ipv4.tcp_max_syn_backlog = 16384
net.ipv4.ip_conntrack_max = 65536
net.ipv4.tcp_max_syn_backlog = 16384
net.ipv4.top_timestamps = 0
net.core.somaxconn = 16384
EOF

# 立即生效
sysctl --system

12、安装docker(三台节点都要做)

1）卸载之前的docker

yum remove docker docker-common docker-selinux docker-engine -y

2）安装docker所需安装包

yum install -y yum-utils device-mapper-persistent-data lvm2

3）安装docker yum源

wget -O /etc/yum.repos.d/docker-ce.repo https://repo.huaweicloud.com/docker-ce/linux/centos/docker-ce.repo

4）安装docker

yum install docker-ce -y

不成功多执行几次

5）启动并设置开机自启

systemctl enable --now docker.service

六、安装k8s

1、安装kubelet(所有节点都要装)

1）安装kebenetes yum 源

cat <<EOF > /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/
enabled=1
gpgcheck=0
repo_gpgcheck=0
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF

2）安装并启动且开机自启

[root@k8s-m-01 ~]# yum install -y kubelet kubeadm kubectl
[root@k8s-m-01 ~]# systemctl enable --now kubelet

2、主节点操作（node节点不执行）

1）初始化master节点(仅在master节点上执行)

kubeadm init \
--image-repository=registry.cn-hangzhou.aliyuncs.com/k8sos \
--kubernetes-version=v1.20.2 \
--service-cidr=10.96.0.0/12 \
--pod-network-cidr=10.244.0.0/16

2）建立用户集群权限

mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config

#如果是root用户，则可以使用：
echo "export KUBECONFIG=/etc/kubernetes/admin.conf" >> ~/.bash_profile
source ~/.bash_profile

3）安装集群网络插件（flannel.yaml见附件）

[root@k8s-master-01 ~]#kubectl apply -f flannel.yaml

4）将工作节点加入集群

[root@k8s-master-01 ~]#kubeadm token create    --print-join-command

kubeadm join 192.168.15.31:6443 --token zvyidd.gxnw8v1zdv3pdlzf     --discovery-token-ca-cert-hash sha256:05b6946a4de3f0e6900291118cf25de7bcdce3bcd19aa53eaaa8ffa86d67e440
## 注：将上方生成的token复制到node节点上执行。

5）检查集群状态

## 第一种方式
[root@k8s-master-01 ~]# kubectl get nodes
NAME            STATUS   ROLES                  AGE     VERSION
k8s-master-01   Ready    control-plane,master   11m     v1.20.5
k8s-node-01     Ready    <none>                 3m13s   v1.20.5
k8s-node-02     Ready    <none>                 3m9s    v1.20.5

# 第二种方式
[root@k8s-master-01 ~]# kubectl get pods -n kube-system
NAME                                    READY   STATUS    RESTARTS   AGE
coredns-f68b4c98f-mmxkc                 1/1     Running   0          11m
coredns-f68b4c98f-nvp6b                 1/1     Running   0          11m
etcd-k8s-master-01                      1/1     Running   0          11m
kube-apiserver-k8s-master-01            1/1     Running   0          11m
kube-controller-manager-k8s-master-01   1/1     Running   0          11m
kube-flannel-ds-25kk5                   1/1     Running   0          4m49s
kube-flannel-ds-9zkkl                   1/1     Running   0          3m22s
kube-flannel-ds-sx57n                   1/1     Running   0          3m26s
kube-proxy-2gsrl                        1/1     Running   0          11m
kube-proxy-jkdbs                        1/1     Running   0          3m22s
kube-proxy-wqrc2                        1/1     Running   0          3m26s
kube-scheduler-k8s-master-01            1/1     Running   0          11m

# 第三种方式：直接验证集群DNS
[root@k8s-master-01 ~]# kubectl run test -it --rm --image=busybox:1.28.3
If you don't see a command prompt, try pressing enter.
/ # nslookup kubernetes
Server:    10.96.0.10
Address 1: 10.96.0.10 kube-dns.kube-system.svc.cluster.local

Name:      kubernetes
Address 1: 10.96.0.1 kubernetes.default.svc.cluster.local

附件：

---
apiVersion: policy/v1beta1
kind: PodSecurityPolicy
metadata:
  name: psp.flannel.unprivileged
  annotations:
    seccomp.security.alpha.kubernetes.io/allowedProfileNames: docker/default
    seccomp.security.alpha.kubernetes.io/defaultProfileName: docker/default
    apparmor.security.beta.kubernetes.io/allowedProfileNames: runtime/default
    apparmor.security.beta.kubernetes.io/defaultProfileName: runtime/default
spec:
  privileged: false
  volumes:
  - configMap
  - secret
  - emptyDir
  - hostPath
  allowedHostPaths:
  - pathPrefix: "/etc/cni/net.d"
  - pathPrefix: "/etc/kube-flannel"
  - pathPrefix: "/run/flannel"
  readOnlyRootFilesystem: false
  # Users and groups
  runAsUser:
    rule: RunAsAny
  supplementalGroups:
    rule: RunAsAny
  fsGroup:
    rule: RunAsAny
  # Privilege Escalation
  allowPrivilegeEscalation: false
  defaultAllowPrivilegeEscalation: false
  # Capabilities
  allowedCapabilities: ['NET_ADMIN', 'NET_RAW']
  defaultAddCapabilities: []
  requiredDropCapabilities: []
  # Host namespaces
  hostPID: false
  hostIPC: false
  hostNetwork: true
  hostPorts:
  - min: 0
    max: 65535
  # SELinux
  seLinux:
    # SELinux is unused in CaaSP
    rule: 'RunAsAny'
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: flannel
rules:
- apiGroups: ['extensions']
  resources: ['podsecuritypolicies']
  verbs: ['use']
  resourceNames: ['psp.flannel.unprivileged']
- apiGroups:
  - ""
  resources:
  - pods
  verbs:
  - get
- apiGroups:
  - ""
  resources:
  - nodes
  verbs:
  - list
  - watch
- apiGroups:
  - ""
  resources:
  - nodes/status
  verbs:
  - patch
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: flannel
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: flannel
subjects:
- kind: ServiceAccount
  name: flannel
  namespace: kube-system
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: flannel
  namespace: kube-system
---
kind: ConfigMap
apiVersion: v1
metadata:
  name: kube-flannel-cfg
  namespace: kube-system
  labels:
    tier: node
    app: flannel
data:
  cni-conf.json: |
    {
      "name": "cbr0",
      "cniVersion": "0.3.1",
      "plugins": [
        {
          "type": "flannel",
          "delegate": {
            "hairpinMode": true,
            "isDefaultGateway": true
          }
        },
        {
          "type": "portmap",
          "capabilities": {
            "portMappings": true
          }
        }
      ]
    }
   net-conf.json: |
    {
      "Network": "10.244.0.0/16",
      "Backend": {
        "Type": "vxlan"
      }
    }
 ---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: kube-flannel-ds
  namespace: kube-system
  labels:
    tier: node
    app: flannel
spec:
  selector:
    matchLabels:
      app: flannel
  template:
    metadata:
      labels:
        tier: node
        app: flannel
    spec:
      affinity:
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
            - matchExpressions:
              - key: kubernetes.io/os
                operator: In
                values:
                - linux
      hostNetwork: true
      priorityClassName: system-node-critical
      tolerations:
      - operator: Exists
        effect: NoSchedule
      serviceAccountName: flannel
      initContainers:
      - name: install-cni
        image: registry.cn-hangzhou.aliyuncs.com/alvinos/flanned:v0.13.1-rc1
        command:
        - cp
        args:
        - -f
        - /etc/kube-flannel/cni-conf.json
        - /etc/cni/net.d/10-flannel.conflist
        volumeMounts:
        - name: cni
          mountPath: /etc/cni/net.d
        - name: flannel-cfg
          mountPath: /etc/kube-flannel/
      containers:
      - name: kube-flannel
        image: registry.cn-hangzhou.aliyuncs.com/alvinos/flanned:v0.13.1-rc1
        command:
        - /opt/bin/flanneld
        args:
        - --ip-masq
        - --kube-subnet-mgr
        resources:
          requests:
            cpu: "100m"
            memory: "50Mi"
          limits:
            cpu: "100m"
            memory: "50Mi"
        securityContext:
          privileged: false
          capabilities:
            add: ["NET_ADMIN", "NET_RAW"]
        env:
        - name: POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        volumeMounts:
        - name: run
          mountPath: /run/flannel
        - name: flannel-cfg
          mountPath: /etc/kube-flannel/
      volumes:
      - name: run
        hostPath:
          path: /run/flannel
      - name: cni
        hostPath:
          path: /etc/cni/net.d
      - name: flannel-cfg
        configMap:
          name: kube-flannel-cfg
centosdockerk8skubernetslinuxSRE容器运维
上一篇
下一篇

推荐文章

第二节：二进制安装kubernets
Copyright © 2022 Egon的技术星球 egonlin.com 版权所有 沪ICP备2022009235号 沪公网安备31011802005110号 青浦区尚茂路798弄 联系方式-13697081366
